1310 end yoke

Quick Details

FAQ

Shipping details

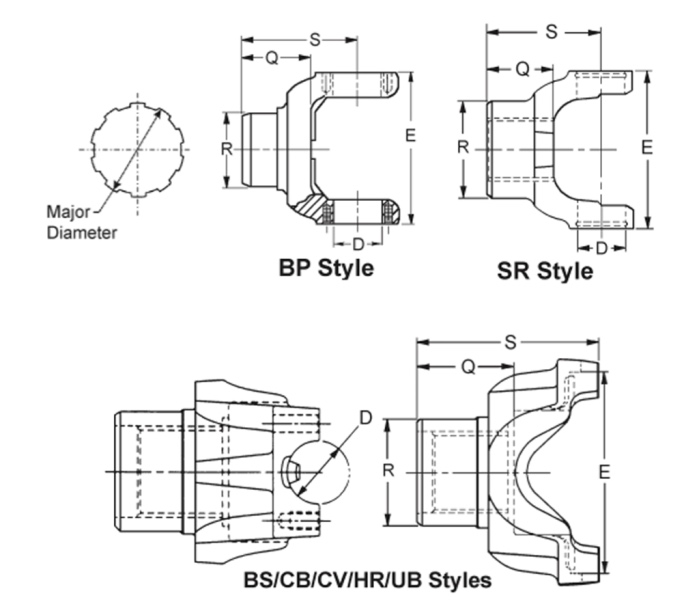

1310 Series End Yokes
Part#	Neapco®Part#	Dana® Part#	Spline Major Diameter	SPLINES	(s )Length	(Q) Bore	(R) Seal
DS2-4-3331	N2-4-3331	2-4-3331	0.875	13
DS2-4-4921		2-4-4921	1	15		1.255
DS2-4-2851X		2-4-2851X	1.125	10	3.000	1.500	1.562
DS2-4-4061X	N2-4-4061X	2-4-4061X	1.125	10	3.000	1.500	1.562
DS2-4-4341	N2-4-4341	2-4-4341	1.146	26	3.000	1.500	1.55
DS2-4-3741-1		2-4-3741-1	1.229	28		1.375	1.844
DS2-4-1087	N2-4-1087		1.25	19	2.500	1.455	2
DS2-4-1741		2-4-1741	1.25	14	2.625	1.500
DS2-4-6341		2-4-6341	1.275		19.000
DS2-4-3801X	N2-4-3801X	2-4-3801X	1.276	29	2.940	1.500	1.875
DS2-4-2401-1		2-4-2401-1	1.375	10	3.438	2.000	2.125
DS2-4-4191	N2-4-4191	2-4-4191	1.401	32	3.440	2.000	2.125
DS2-4-5341	N2-4-5341	2-4-5341	1.401	32	3.880	2.000	1.875
DS2-4-JK01	N2-4-JK01		1.401	32	3.440	2.000	1.94
DS2-4-JK03	N2-4-JK03		1.401	32	3.840	2.000	1.94
DS2-4-2671-1		2-4-2671-1	1.375	10	1.750	3.219
DS2-4-1921		2-4-1921	1.72
DS2-4-5341	N2-4-5341		1.401	32	3.880	2.000	1.875
DS2-4-2671-1		2-4-2671-1	1.375	10	1.750	3.219

1.What do you offer?

Drive Shafts

Front Axle Shafts / Yoke Shafts / Cardan Shafts

Pinion Yokes / Coupling Yokes

Stub Tube Yokes / Weld Yokes / Sleeve Yokes / Flange Yokes

Universal Joints

2. Q: What’s the MOQ (minimum order quantity)?

A: 500pcs or 3000USD.

3. Q: What’s the best FOB price?

A: Our price is made as per your drawing specification as well as the purchasing quantity.

4. Q: What’s the lead time?

A: Normally, it takes around 45-60 days.

5. Q: Why the lead time is so long?

A: One drive shaft part is made in around 20 machining processes. If every process takes 1 to 2 days, then it’s already at least 40 days. Not to say the forging and heat treatment time which take around 7 days min.

6. Q: What’s the payment term?

A: FOB Shanghai/Ningbo, paid by T/T. We will ask for down payment before production, and the balance paid off before shipment. Of course, we may also negotiate it.

7. Q: What kind of packing can you provide?

A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.

8. Q: Which countries have you exported?

A: American, Germany, Denmark, Spain, Holland, Italy, Japan etc.

Service and quality information:

9. Q: Can you make as per custom drawing?

A: Yes, we can do that.

10. Q: If I don’t have drawing, what can you do for me?

A: If you don’t have drawing, but have the sample part, you may send us. We will check if we can make it or not.

11. Q: How do you make sure the quality of your products?

We will do a series of inspections, such as:

1. raw material inspection (includes chemical and physical mechanical characters inspection),

2. machining process dimensional inspection (includes: 1st pc inspection, self inspection, final inspection),

3. heat treatment result inspection,

4. gear tooth inspection (to know the achieved gear quality level)

Packaging

1) Inner packaging: pp bag, bubble bag, plastic wrap etc.

2) Outer packaging: carton,wooden case, pallet etc.

3) As your requirement.

Shipping

1) Less than 50kg, you could choose express, such as DHL, UPS, FedEx, TNT and EMS. (door to door, so convenient)

2) From 50kg to 200kg, you could choose to send by air. (fast and safe, but expensive)

3) More than 200kg, you may consider to send by sea. (cheap, but long transit time)

4) We can also deliver as client’s requirement.

5) Nearest Port: Shenzhen Port

6) We will choose the cheapest and safest way to ship the goods to you.

Our other related products

These parets are Dingshun parts and are not manufactured by the original Equipment manufacturer.
Original Equipment Manufacturers names,part numbers and descirptions are quoted for reference purposes only.

1310 Tube Yoke
Part#	Neapco®Part#	Dana® Part#	Tube size	(H) Length	Joint Angle	U-joint kits
DS.2-26-347		2-26-347	1.250x.120	2.125	30.0	5-153X,5-1310X,5-1310X-1
DS.2-28-447		2-28-447	1.750x.065	1.688	22.0	5-153X,5-1310X,5-1310X-1
DS.2-28-417	N2-28-417	2-28-417	2.00x.065	1.688	22.0	5-153X,5-1310X,5-1310X-1
DS.2-28-357	N2-28-357	2-28-357	2.00x.083	1.688	22.0	5-153X,5-1310X,5-1310X-1
DS.2-28-1757		2-28-1757	2.00x.120	1.688	22.0	5-153X,5-1310X,5-1310X-1
DS.2-28-277	N2-28-277	2-28-277	2.50x.065	1.844	22.0	5-153X,5-1310X,5-1310X-1
DS.2-28-367	N2-28-367	2-28-367	2.50x.083	1.844	21.5	5-153X,5-1310X,5-1310X-1
DS.2-28-307	N2-28-307	2-28-307	2.75x.065	1.688	21.5	5-153X,5-1310X,5-1310X-1
DS.2-28-1617	N2-28-1617	2-28-1617	2.75x.083	1.688	22.0	5-153X,5-1310X,5-1310X-1
DS.2-28-437	N2-28-327	2-28-437	3.00x.065	1.688	21.5	5-153X,5-1310X,5-1310X-1
DS.2-28-557		2-28-557	3.25x.065	1.688		5-153X,5-1310X,5-1310X-1
DS.2-28-397	N2-28-397	2-28-397	3.25x.065	1.688	21.0	5-153X,5-1310X,5-1310X-1
DS.2-28-427	N2-28-427	2-28-427	3.50x.083	1.688	21.5	5-153X,5-1310X,5-1310X-1
DS.2-28-021	N2-28-021		4.00x.065	1.5	21.5	5-153X,5-1310X,5-1310X-1
DS.2-28-477	N2-28-477	2-28-477	4.00x.083	1.5	21.5	5-153X,5-1310X,5-1310X-1

1310 Series Ball Stud Yokes
Part#	Neapco®Part#	Dana® Part#	Tube size	(J)Length	(K)Length	U-joint kits
DS.2-28-2807X	N2-28-2807X		1.250 X .120	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2827X	N2-28-2827X		1.750 X .095	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2867X	N2-28-2867X		2.000 X .120	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-3087X	N2-28-3087X		2.500 X .065	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2887X	N2-28-2887X		2.500 X .083	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2747X	N2-28-2747X		2.750 X .065	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2907X	N2-28-2907X		3.000 X .065	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2927X	N2-28-2927X		3.000 X .083	1.64	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2947X	N2-28-2947X	2-28-2947X	2.000 X .120	1.641	1.440	5-153X,5-1310X,5-1310X-1
DS.2-28-2957X	N2-28-2957X		2.500 X .083	1.641	1.438	5-153X,5-1310X,5-1310X-1
DS.2-28-2967X	N2-28-2967X		3.000 X .065	1.641	1.438	5-153X,5-1310X,5-1310X-1
DS.2-28-2977X	N2-28-2977X		3.000 X .083	1.641	1.438	5-153X,5-1310X,5-1310X-1
DS.2-28-3257X	N2-28-3257X		2.000 X .120	1.66	1.380	5-153X,5-1310X,5-1310X-1
DS.2-28-3817X	N2-28-3817X		2.750 X .083	1.641	1.438	5-153X,5-1310X,5-1310X-1


1310 Series Center Yokes
Part#	Neapco®Part#	Dana® Part#	(C)Length	Swing Diameter	E	U-joint kits
DS.2-26-367	N2-26-367	2-26-367	2.688	3.875	3.469	5-153X,5-1310X,5-1310X-1
DS.2-26-497		2-26-497	2.688	3.875	3.469	5-153X,5-1310X,5-1310X-1
DS.2-26-477	N2-26-477		2.688	3.875	3.469	5-153X,5-1310X,5-1310X-1
DS.2-26-177		2-26-177	2.750	3.875	3.469	5-153X,5-1310X,5-1310X-1
DS.2-26-257		2-26-257	3.000	3.875	3.469	5-153X,5-1310X,5-1310X-1

1310 Flange Yokes
Part#	Neapco®Part#	Dana® Part#	PILOT	BOLT CIRCLE	(G )Length	Holes
DS.2-2-780	N2-2-780		1.811 / 46mm	66x66 sq	1.562	4*11mm
DS.2-2-1757	N2-2-1757		104mm	91mm	54.5mm	6
DS.2-2-939	N2-2-939		2.375	3.125	1.375
DS.2-2-1379	N2-2-1379		2.00" F	4.250" Sq	1.625"	4
DS.2-2-899-1	N2-2-899-1		2.250" M	2.75	1.625	4
DS.2-2-329	N2-2-329		2.375	3.125	1.375
DS.2-2-1949		2-2-1949	2.558	3.750 Square1.781		4 @ 12mm
DS.2-2-479	N2-2-479		2.750"	3.750" Rectangle	1.375	4
DS.2-2-349	N2-2-349		3.625" F	2.875"	1.3750"	4
DS.2-2-799	N2-2-799		46mm	85mm Rectangle	1.625
DS.2-2-799-1	N2-2-799-1		46mm	85mm sq

1310 CV Flange Yokes
Part#	Neapco®Part#	Dana® Part#	PILOT	BOLT CIRCLE	(G )Length	Bolt Size	Bolt Pattern
DS2-83-288-1X	N2-83-288-1X		1.811 / 46mm	4.38	1.62	8mm	60x68.5
DS2-83-288-2X	N2-83-288-2X		1.811 / 46mm	4.38	1.62	10mm	64x56
DS2-83-288-3X	N2-83-288-3X		1.811 / 46mm	85	1.62	10mm	60x60
DS2-83-288-4X	N2-83-288-4X		1.811 / 46mm	4.38	1.62	11mm	66x66
DS2-83-599X	N2-83-599X		2.000	3	1.625
DS2-83-388X	N2-83-388X		2.00" F	3.50" Square	1.625
DS2-83-543X	N2-83-543X		2.00" F	3.50" Square
DS2-83-206X	N2-83-206X		3.937 / 100mm	3.386 / 86mm	74mm	8 mm x 6	even
DS2-83-288X	N2-83-288X		4.094M / 104mm	3.583 / 91mm	1.062	8mm	6 hole

1310 Slip Yoke
Part#	Neapco®Part#	Dana® Part#	SPLINES	Angle	(J)Length	U-joint kits	Application
DS.2-3-3951KX		2-3-3951KX	16	16	3.562	5-153X,5-1310X,5-1310X-1
DS.2-3-1421KX		2-3-1421KX	16	16	5.000	5-153X,5-1310X,5-1310X-1
DS.2-3-4441KX	N2-3-4441KX	2-3-4441KX	16	30	6.562	5-153X,5-1310X,5-1310X-1
DS.2-3-348KX		2-3-348KX	16	15	4.188	5-153X,5-1310X,5-1310X-1
DS.2-3-128KX	N2-3-128KX	2-3-128KX	16	15	5.375	5-153X,5-1310X,5-1310X-1
DS.2-3-4951KX	N2-3-4951KX		16	20	6.000	5-153X,5-1310X,5-1310X-1
DS.2-3-7981KX	N2-3-7981KX	2-3-7981KX	16	20	6.000	5-153X,5-1310X,5-1310X-1
DS.2-3-8021KX	N2-3-8021KX	2-3-8021KX	16	30	7.875	5-153X,5-1310X,5-1310X-1
DS.2-3-6071KX	N2-3-6071KX		16		8.090	5-153X,5-1310X,5-1310X-1
DS.2-3-6061KX	N2-3-6061KX	2-3-6061KX	16		6.875	5-153X,5-1310X,5-1310X-1

1310 Transmission Slip Yokes
Part#	Neapco®Part#	Dana® Part#	Spline Major Diameter	SPLINES	(R) Seal	(J )Length	U-joint kits
			1.005	28	1.499	6.000	5-153X,5-1310X,5-1310X-1
				28	1.499	6.500	5-153X,5-1310X,5-1310X-1
				31	1.886	7.000	5-153X,5-1310X,5-1310X-1
		2-3-13461X		22 / 24	1.375	6.040	5-153X,5-1310X,5-1310X-1
		2-3-9701X	1.104	20 / 21	1.500	6.000	5-153X,5-1310X,5-1310X-1
		2-3-8431X	1.113	24 /25	1.375	6.500	5-153X,5-1310X,5-1310X-1
		2-3-8891X	1.113	24 /25	1.375	8.250	5-153X,5-1310X,5-1310X-1
		2-3-11731X	1.123	24 /26	1.495	6.040	5-153X,5-1310X,5-1310X-1
		2-3-1331X	1.172	16	1.500	4.875	5-153X,5-1310X,5-1310X-1
	N2-3-6081X		1.176	26 /27	1.500	5.469	5-153X,5-1310X,5-1310X-1
		2-3-4911X	1.176	26 /27	1.500	4.875	5-153X,5-1310X,5-1310X-1
		2-3-9211X	1.176	26 /27	1.500	4.891	5-153X,5-1310X,5-1310X-1
		2-3-6081X	1.176	26 /27	1.500	5.469	5-153X,5-1310X,5-1310X-1
		2-3-12411X	1.176	26 /27	1.500	5.750	5-153X,5-1310X,5-1310X-1
		2-3-11071X	1.176	26 /27	1.500	6.417	5-153X,5-1310X,5-1310X-1
		2-3-14871X	1.176	26 /27	1.500	7.620	5-153X,5-1310X,5-1310X-1
		2-3-15321X	1.176	26 /27	1.500	5.750	5-153X,5-1310X,5-1310X-1
			1.176	26 /27	1.500	5.812	5-153X,5-1310X,5-1310X-1
	N2-3-1293		1.181	22	1.621	6.560	5-153X,5-1310X,5-1310X-1
			1.2	23	1.575	6.125	5-153X,5-1310X,5-1310X-1
		2-3-11721X	1.201	23	1.578	5.750	5-153X,5-1310X,5-1310X-1
		2-3-8251X	1.220	27 /28	1.500	6.500	5-153X,5-1310X,5-1310X-1
		2-3-4871X	1.220	28	1.500	6.000	5-153X,5-1310X,5-1310X-1
			1.220	28	1.500	7.750	5-153X,5-1310X,5-1310X-1
	N2-3-1267X		1.220	27 / 28	1.50 / 1.60	7.000	5-153X,5-1310X,5-1310X-1
		2-3-10131X	1.284	28 /30	1.656	7.422	5-153X,5-1310X,5-1310X-1
		2-3-14791X	1.284	29 /30	1.681	6.750	5-153X,5-1310X,5-1310X-1
	N2-3-3575X		1.312	29 /30	1.680	8.060	5-153X,5-1310X,5-1310X-1
		2-3-5281X	1.378	31 /32	1.680	5.188	5-153X,5-1310X,5-1310X-1
		2-3-10431X	1.378	31 /32	1.886	5.188	5-153X,5-1310X,5-1310X-1
	N2-3-9131X		1.378	31 /32	1.875	8.000	5-153X,5-1310X,5-1310X-1
	N2-3-9101X		1.378	31 /32	1.875	8.060	5-153X,5-1310X,5-1310X-1
		2-3-9811X	1.403	21	2.000	4.130	5-153X,5-1310X,5-1310X-1
		2-3-9761X	1.564	24	2.000	4.125

1310 Series End Yokes
Part#	Neapco®Part#	Dana® Part#	Spline Major Diameter	SPLINES	(s )Length	(Q) Bore	(R) Seal
DS2-4-3331	N2-4-3331	2-4-3331	0.875	13
DS2-4-4921		2-4-4921	1	15		1.255
DS2-4-2851X		2-4-2851X	1.125	10	3.000	1.500	1.562
DS2-4-4061X	N2-4-4061X	2-4-4061X	1.125	10	3.000	1.500	1.562
DS2-4-4341	N2-4-4341	2-4-4341	1.146	26	3.000	1.500	1.55
DS2-4-3741-1		2-4-3741-1	1.229	28		1.375	1.844
DS2-4-1087	N2-4-1087		1.25	19	2.500	1.455	2
DS2-4-1741		2-4-1741	1.25	14	2.625	1.500
DS2-4-6341		2-4-6341	1.275		19.000
DS2-4-3801X	N2-4-3801X	2-4-3801X	1.276	29	2.940	1.500	1.875
DS2-4-2401-1		2-4-2401-1	1.375	10	3.438	2.000	2.125
DS2-4-4191	N2-4-4191	2-4-4191	1.401	32	3.440	2.000	2.125
DS2-4-5341	N2-4-5341	2-4-5341	1.401	32	3.880	2.000	1.875
DS2-4-JK01	N2-4-JK01		1.401	32	3.440	2.000	1.94
DS2-4-JK03	N2-4-JK03		1.401	32	3.840	2.000	1.94
DS2-4-2671-1		2-4-2671-1	1.375	10	1.750	3.219
DS2-4-1921		2-4-1921	1.72
DS2-4-5341	N2-4-5341		1.401	32	3.880	2.000	1.875
DS2-4-2671-1		2-4-2671-1	1.375	10	1.750	3.219
