DS 1000 series END YOKES: SQUARE-Proven Quality Drivelines

Home > Products & services > By Series > 1000

Return

1000 End YOKE

Quick Details

FAQ

Shipping details

PART NAME: End YOKE

SERIES: 1000

PTO END YOKES: SQUARE HOLES
Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	Square Dimensions
10DS-4-123	10N-4-123	10-0412	10/4/2012	1000	0.875"
10DS-4-52	10N-4-52	10-0452	10/4/1952	1000	1"
10-3-122XRDS			10-3-122XR
10-3-162XRDS			10-3-162XR
10-3-163XRDS			10-3-163XR
10-3-22XRDS			10-3-22XR
10-3-32XRDS			10-3-32XR
10-3-83XRDS			10-3-83XR
10DS4-123R			10-4-123R
10DS4-12R			10-4-12R
10DS4-193R			10-4-193R
10DS4-22R			10-4-22R
10DS4-481R			10-4-481R
10DS4-52R			10-4-52R
121DS-4-503R			2-4-503R

1.What do you offer?

Drive Shafts

Front Axle Shafts / Yoke Shafts / Cardan Shafts

Pinion Yokes / Coupling Yokes

Stub Tube Yokes / Weld Yokes / Sleeve Yokes / Flange Yokes

Universal Joints

2. Q: What’s the MOQ (minimum order quantity)?

A: 500pcs or 3000USD.

3. Q: What’s the best FOB price?

A: Our price is made as per your drawing specification as well as the purchasing quantity.

4. Q: What’s the lead time?

A: Normally, it takes around 45-60 days.

5. Q: Why the lead time is so long?

A: One drive shaft part is made in around 20 machining processes. If every process takes 1 to 2 days, then it’s already at least 40 days. Not to say the forging and heat treatment time which take around 7 days min.

6. Q: What’s the payment term?

A: FOB Shanghai/Ningbo, paid by T/T. We will ask for down payment before production, and the balance paid off before shipment. Of course, we may also negotiate it.

7. Q: What kind of packing can you provide?

A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.

8. Q: Which countries have you exported?

A: American, Germany, Denmark, Spain, Holland, Italy, Japan etc.

Service and quality information:

9. Q: Can you make as per custom drawing?

A: Yes, we can do that.

10. Q: If I don’t have drawing, what can you do for me?

A: If you don’t have drawing, but have the sample part, you may send us. We will check if we can make it or not.

11. Q: How do you make sure the quality of your products?

We will do a series of inspections, such as:

1. raw material inspection (includes chemical and physical mechanical characters inspection),

2. machining process dimensional inspection (includes: 1st pc inspection, self inspection, final inspection),

3. heat treatment result inspection,

4. gear tooth inspection (to know the achieved gear quality level)

Packaging

1) Inner packaging: pp bag, bubble bag, plastic wrap etc.

2) Outer packaging: carton,wooden case, pallet etc.

3) As your requirement.

Shipping

1) Less than 50kg, you could choose express, such as DHL, UPS, FedEx, TNT and EMS. (door to door, so convenient)

2) From 50kg to 200kg, you could choose to send by air. (fast and safe, but expensive)

3) More than 200kg, you may consider to send by sea. (cheap, but long transit time)

4) We can also deliver as client’s requirement.

5) Nearest Port: Shenzhen Port

6) We will choose the cheapest and safest way to ship the goods to you.

Our other related products

PTO SLIP YOKES: HEX
Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	Hex
10-3-162XDS			10-3-162X	HEX	0.875"
10-2-32XDS			10-2-32X	HEX	1.125"
PTO SLIP YOKES: SQUARE
Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	square
10DS-3-22X	10N-3-22X	10-0322	10-3-22X	SQUARE	0.875"
10DS-3-122X	10N-3-122X	10-3122	10-3-122X	SQUARE	1"
PTO SLIP YOKES: KEYWAY
Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	Round		keyway
10DS-3-33X	10N-3-33X	10-0333	10-3-33X	ROUND	0.875"		0.25"
10DS-3-83X	10N-3-83X	10-0383	10-3-83X	ROUND	1"		0.25"
10DS3-163X	10N3-163X	10-3163	10-3-163X	ROUND	1.25"		0.312"
PTO SLIP YOKES: SPLINED HOKES
Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	Length		spline O.D.	Spline
10DS4-481	10N4-481	10-4481	10-4-481	1000	1.626"		0.875"	13"
PTO SLIP YOKES: SPLINED HOKES

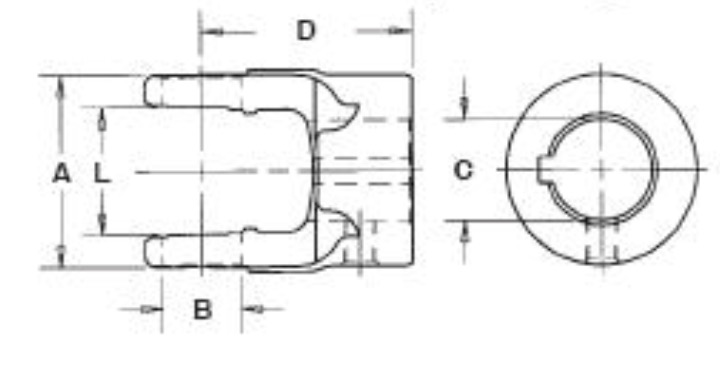

Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	Round Hole Dia.	Keyway width	Keyway Location	Set Screw
10DS-4-23	10N-4-23	10-0423	45303	1000	0.75"	0.25"	3	9
10N-4-23	10N-4-63	10-0463	23288	1000	0.85"	0.25"	3	9
10-4-83RD				1000	1"	0.188"	3	9
10DS-4-93	10N-4-93	10-0493	34246	1000	1"	0.25"	3	9
10DS-4-103	10N-4-103	804904	10-4-103	1000	1.125"	0.25"	3	6
10DS-3-113	10N-3-113	808557	10-4-103	1000	1.125"	0.312"	3	9
10DS-4-183	10N-4-183	834124	10-4-183	1000	1.125"	0.25"	9	12
10DS-4-123	10N-4-123	812209	10-4-123	1000	1.125"	0.312"	3	9
10DS-4-193	10N-4-193	83777	10-4-193	1000	1.125"	0.312"	9	12
131DS-4-583	131N-4-583	N2-4-583	2-4-583	1310	0.85"	0.875"	12	6
121DS-4-503	121N-4-503	N2-4-503	2-4-503	1310	1.125"	1.125"	12	6
131DS-4-533	131N-4-533	N2-4-533	2-4-533	1310	1.125"	1.25"	12	6
PTO END YOKES: SQUARE HOLES
Part#	Arvin Meritor® Part#	Neapco®Part#	Dana® Part#	Series	Square Dimensions
10DS-4-123	10N-4-123	10-0412	10/4/2012	1000	0.875"
10DS-4-52	10N-4-52	10-0452	10/4/1952	1000	1"
10-3-122XRDS			10-3-122XR
10-3-162XRDS			10-3-162XR
10-3-163XRDS			10-3-163XR
10-3-22XRDS			10-3-22XR
10-3-32XRDS			10-3-32XR
10-3-83XRDS			10-3-83XR
10DS4-123R			10-4-123R
10DS4-12R			10-4-12R
10DS4-193R			10-4-193R
10DS4-22R			10-4-22R
10DS4-481R			10-4-481R
10DS4-52R			10-4-52R
121DS-4-503R			2-4-503R

These parets are Dingshun parts and are not manufactured by the original Equipment manufacturer.

Original Equipment Manufacturers names,part numbers and descirptions are quoted for reference purposes only.
