1000 Slip yoke

Quick Details

FAQ

Shipping details

PART NAME： slip yoke

SERIES: 1000

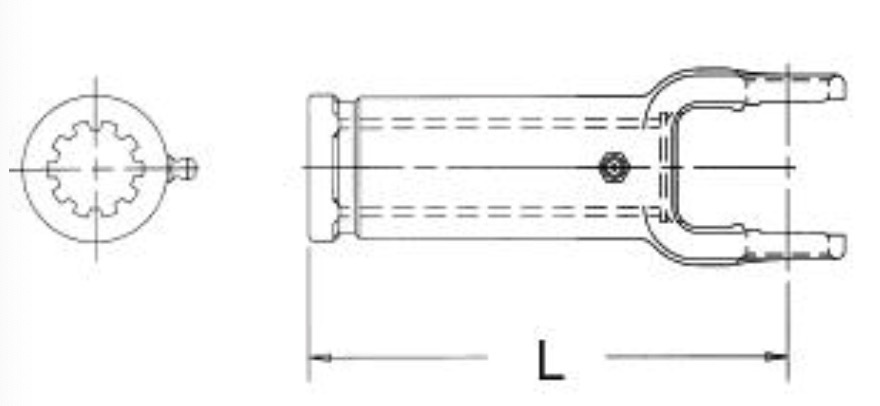

1000 Slip Yoke
Part#	Neapco®Part#	Dana® Part#	Type	SPLINES	(J)Length	U-joint kits
DS.10-0381	10-0381		Splined	10	5.50	5-170X
DS.10-1765	10-1765		Splined	6	5.50	5-170X,5-110X
DS.10-3-18KX	10-0318	10-3-18KX	Splined	16	5.50	5-170X,5-110X
DS.10-0312	10-0312		Square		5.50	5-170X,5-110X
DS.10-1769	10-1769		Rectangular		5.50	5-170X,5-110X
DS.10-3162	10-3162		Hex		5.50	5-170X,5-110X
DS.10-3-22X	10-0322	10-3-22X	Square		5.50	5-170X,5-110X
DS.10-3122	10-3122	10-3-122X	Square		5.50	5-170X,5-110X

1.What do you offer?

Drive Shafts

Front Axle Shafts / Yoke Shafts / Cardan Shafts

Pinion Yokes / Coupling Yokes

Stub Tube Yokes / Weld Yokes / Sleeve Yokes / Flange Yokes

Universal Joints

2. Q: What’s the MOQ (minimum order quantity)?

A: 500pcs or 3000USD.

3. Q: What’s the best FOB price?

A: Our price is made as per your drawing specification as well as the purchasing quantity.

4. Q: What’s the lead time?

A: Normally, it takes around 45-60 days.

5. Q: Why the lead time is so long?

A: One drive shaft part is made in around 20 machining processes. If every process takes 1 to 2 days, then it’s already at least 40 days. Not to say the forging and heat treatment time which take around 7 days min.

6. Q: What’s the payment term?

A: FOB Shanghai/Ningbo, paid by T/T. We will ask for down payment before production, and the balance paid off before shipment. Of course, we may also negotiate it.

7. Q: What kind of packing can you provide?

A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.

8. Q: Which countries have you exported?

A: American, Germany, Denmark, Spain, Holland, Italy, Japan etc.

Service and quality information:

9. Q: Can you make as per custom drawing?

A: Yes, we can do that.

10. Q: If I don’t have drawing, what can you do for me?

A: If you don’t have drawing, but have the sample part, you may send us. We will check if we can make it or not.

11. Q: How do you make sure the quality of your products?

We will do a series of inspections, such as:

1. raw material inspection (includes chemical and physical mechanical characters inspection),

2. machining process dimensional inspection (includes: 1st pc inspection, self inspection, final inspection),

3. heat treatment result inspection,

4. gear tooth inspection (to know the achieved gear quality level)

Packaging

1) Inner packaging: pp bag, bubble bag, plastic wrap etc.

2) Outer packaging: carton,wooden case, pallet etc.

3) As your requirement.

Shipping

1) Less than 50kg, you could choose express, such as DHL, UPS, FedEx, TNT and EMS. (door to door, so convenient)

2) From 50kg to 200kg, you could choose to send by air. (fast and safe, but expensive)

3) More than 200kg, you may consider to send by sea. (cheap, but long transit time)

4) We can also deliver as client’s requirement.

5) Nearest Port: Shenzhen Port

6) We will choose the cheapest and safest way to ship the goods to you.

Our other related products

1000 SeriesTube Yoke
Part#	Neapco®Part#	Dana® Part#	Joint Angle	Tube size	(H) Length	U-joint kits
DS.10-1005	10-1005			2.00x.083	2.65	5-170X,5-110X
DS.10-26-37		10-26-37	6.000	1.25x.095	2.56	5-170X,5-110X
DS.10-28-97		10-28-97		1.75x.065	2.00	5-170X,5-110X

1000 Series Center Yokes
Part#	Neapco®Part#	Dana® Part#	(C)Length	Swing Diameter	K	U-joint kits
DS.10-26-47		10-26-47	2.125	2.5	1.5	5-170X,5-110X

1000 Series Flange Yokes
Part#	Neapco®Part#	Dana® Part#	(G )Length	PILOT	BOLT CIRCLE	U-joint kits
DS.10-2-29	10-0229	10-2-29	1.562	2.25	2.75	5-170X,5-110X

1000 Slip Yoke
Part#	Neapco®Part#	Dana® Part#	Type	SPLINES	(J)Length	U-joint kits
DS.10-0381	10-0381		Splined	10	5.50	5-170X
DS.10-1765	10-1765		Splined	6	5.50	5-170X,5-110X
DS.10-3-18KX	10-0318	10-3-18KX	Splined	16	5.50	5-170X,5-110X
DS.10-0312	10-0312		Square		5.50	5-170X,5-110X
DS.10-1769	10-1769		Rectangular		5.50	5-170X,5-110X
DS.10-3162	10-3162		Hex		5.50	5-170X,5-110X
DS.10-3-22X	10-0322	10-3-22X	Square		5.50	5-170X,5-110X
DS.10-3122	10-3122	10-3-122X	Square		5.50	5-170X,5-110X

1000 Series End Yokes, Round Bore
Part#	Neapco®Part#	Dana® Part#	key	Bore Diameter	(s )Length	U-joint kits
DS.10-4-373	10-4373	10-4-373	0.188	0.625	2.5	5-170X,5-110X
DS.10-4-13	10-0413	10-4-13	0.188	0.750	2.5	5-170X,5-110X
DS.10-4-23	10-0423	10-4-23	0.250	0.750	2.5	5-170X,5-110X
DS.10-4-53	10-0453	10-4-53	0.188	0.875	2.5	5-170X,5-110X
DS.10-4-63	10-0463	10-4-63	0.250	0.875	2.5	5-170X,5-110X
DS.10-4-93	10-0493	10-4-93	0.250	1.000	2.5	5-170X,5-110X
DS.10-4-103	10-4103	10-4-103	0.250	1.125	2.5	5-170X,5-110X
DS.10-4-153		10-4-153	0.312	1.188	2.5	5-170X,5-110X
DS.10-4-183	10-4183	10-4-183	0.250	1.250	2.5	5-170X,5-110X
DS.10-4-193	10-4193	10-4-193	0.312	1.250	2.5	5-170X,5-110X
DS.10-4-293		10-4-293	0.312	1.375	2.5	5-170X,5-110X

1000 Series End Yokes, Splined
Part#	Neapco®Part#	Dana® Part#	Splines	Bore Diameter	(s )Length	U-joint kits
DS.10-4-641		10-4-641	13	0.875	3.812	5-170X,5-110X
DS.10-4-481	10-4481	10-4-481	13	0.875	2.5	5-170X,5-110X
DS.10-4-21		10-4-21	6	1.250	2.5	5-170X,5-110X
DS.10-4-31		10-4-31	6	1.375	2.5	5-170X,5-110X

1000 Series End Yokes, Hex
Part#	Neapco®Part#	Dana® Part#	Series	Bore Diameter	(s )Length	U-joint kits
DS.10-4-282	10-4282	10-4-282	1000	0.875	2.5	5-170X,5-110X
DS.10-4-32	10-0432	10-4-32	1000	1.250	2.5	5-170X,5-110X

1000 Series End Yokes, Square
Part#	Neapco®Part#	Dana® Part#	Series	Bore Diameter	(s )Length	U-joint kits
DS.10-4-12	10-0412	10-4-12	1000	0.875	2.5	5-170X,5-110X
DS.10-4-52	10-0452	10-4-52	1000	1.000	2.5	5-170X,5-110X
DS.10-4-262		10-4-262	1000	2.000	2.5	5-170X,5-110X

These parets are Dingshun parts and are not manufactured by the original Equipment manufacturer.

Original Equipment Manufacturers names,part numbers and descirptions are quoted for reference purposes only.
